The whole series are with single channel，dual channels, four channels models, standard 1U chassis design, Large touch screen LCD operated function display, easy to operate. Adopts new PLL frequency synthesis double-conversion technology, lower spurious emission, sound squelch code locked function,stronger anti-interference ability. High cost-effective model design, nice sound quality and performance, clear voice, stable audio carrier signal transmission could be over visible 100 meters range.
Features:
● Using UHF band, PLL circuit, stable character, low spurious emission.
● 50MHz tuneable bandwidth.
● Large touch screen LCD operated function display.
● International EIA standard 1U chassis, equipped with rack mounting kit.
● Integrated antenna distributor, reduce mutual interference efficiently.
● Each channel with an independent balanced output.
● Automatic IR frequency Sync function: transmitter synchronization via IR interface.
● Noise and sound code locked mute control circuit.
● With flat frequency response at 50Hz-16KHz.
Specifications:
RECEIVER
· Carrier Frequency Range: UHF 500~940MHz
· Oscillation Mode: Phase-locked Loop controlled
· Stability: 10PPM
· Switching bandwidth: 30MHz
· Channel spacing: >400kHz
· Sensitivity: 1.5uV @ sinad=12 dB
· Max. Deviation Range: 48KHz
· S/N Ratio: >105dB
· T.H.D.: <0.5% @ 1KHz
· Image rejection: 85 dB typical
· Spurious rejection: 75 dB typical
· Frequency Response: 35Hz~18KHz
· Squelch Control:dual-squelch circuit
· Max. Output Level: Balance : 0—400mv, Unbalance : 0—200mv.
· Power Supply: External DC Power Supply, 0.4A, 12~15V DC
· Dimensions (m/m): 480(L)*45(H)*200(D)
· Weights (Kg): 2.5

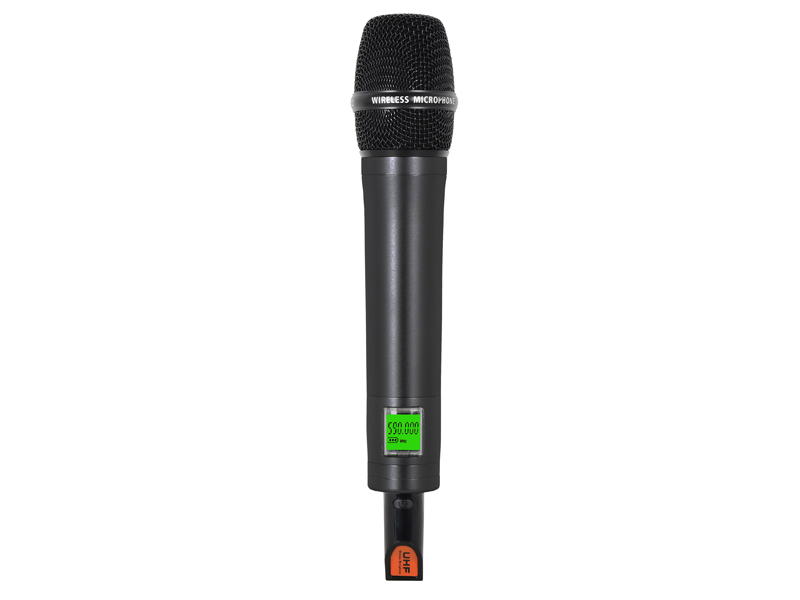

TRANSMITTER(HANDHELD)
· Transmitter power: 10mW
· Spurious emission: <60dB(with carrier)
· Microphone Type: Dynamic
· Directivity： Cardioid
· Battery voltage: 1.5v*2
· Battery life: 8 hours

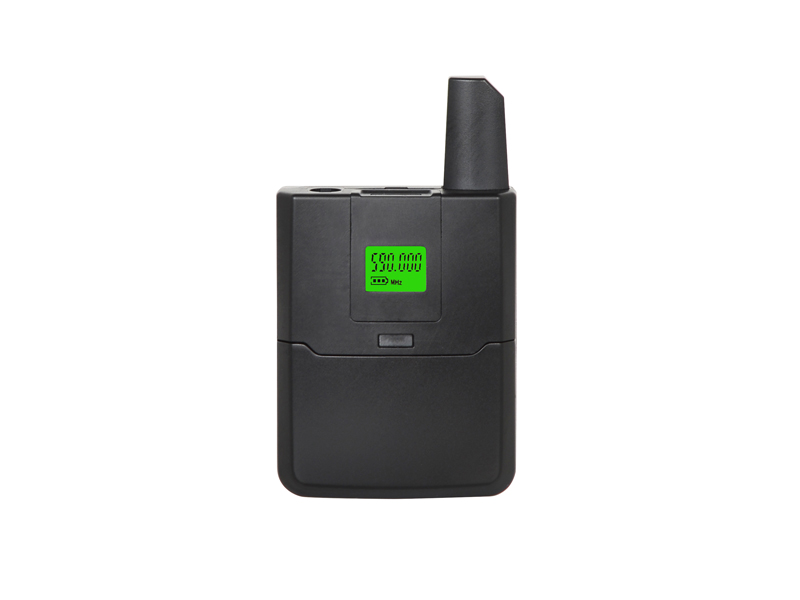

TRANSMITTER(BODYPACK)
· Transmitter power: 10mW
· Spurious emission: <60dB(with carrier)
· Microphone Type: Condenser
· Directivity： Cardioid
· Battery voltage: 1.5v*2
· Battery life: 8 hours
