LS-7130 wireless microphone system is a mini size wireless microphone design for users who require budget solution. The system delivers perfect sound by using low interference UHF frequency band, and it is strong and reliable to meet various usages from small show to home use.
Application:
1. Singing
2. Presenter talk back
3. Conference speak
Feature
Working at low interference UHF band (470-865MHz)
Reliable SMT design circuit
True diversity makes longer working distance，>100meter
Dual filter design makes better anti-interference ability
10 frequencies available
High performance capsule
Constant quality
Specifications:

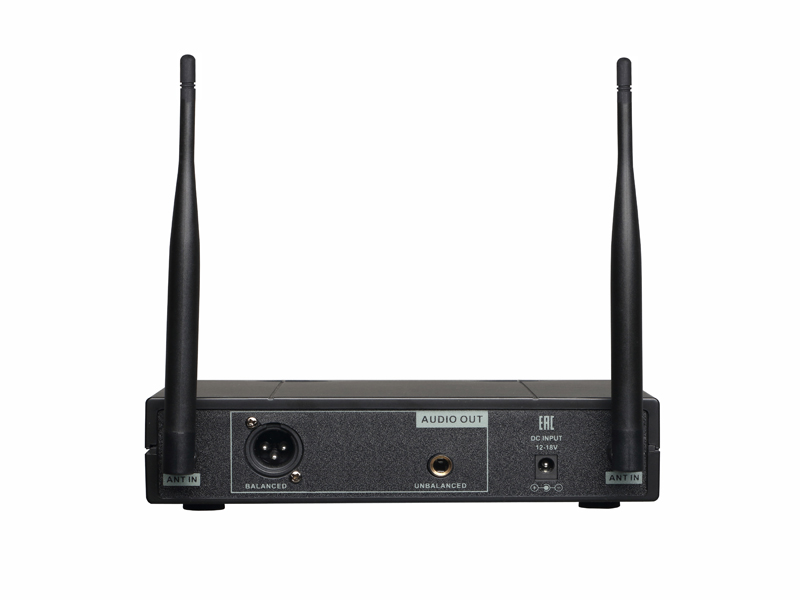

RECEIVER
· Carrier Frequency Range: UHF 470~865MHz
· Oscillation Mode: Quartz Controlled Fixed Frequency
· Diversity Model: true diversity
· Stability: 10PPM
· Sensitivity: 2uV @ sinad=12 dB
· Max. Deviation Range: 30KHz
· S/N Ratio: >105dB
· T.H.D.: <0.5% @ 1KHz
· Frequency Response: 50Hz~15KHz
· Squelch Control:dual-squelch circuit
· Max. Output Level: Balance : 0—400mv, Unbalance : 0—200mv.
· Power Supply: External DC Power Supply, 0.12A, 12~18 DC
· Dimensions (mm): 210(L)*45(H)*150(D)
· Weights (Kg): 0.5

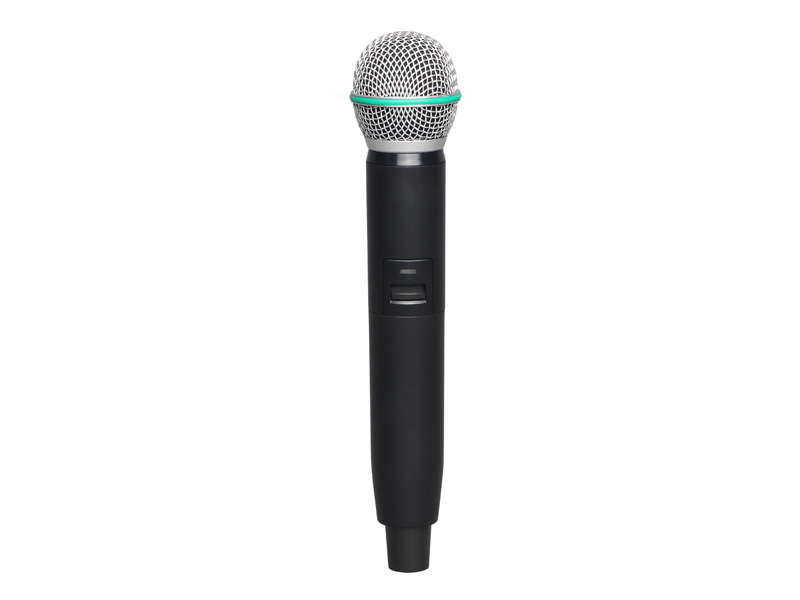

TRANSMITTER(HANDHELD)
· Transmitter power: 10mW
· Spurious emission: <40dB(with carrier)
· Microphone Type: Dynamic
· Directivity： Cardioid
· Battery voltage: 1.5v*2
· Battery life: 8 hours

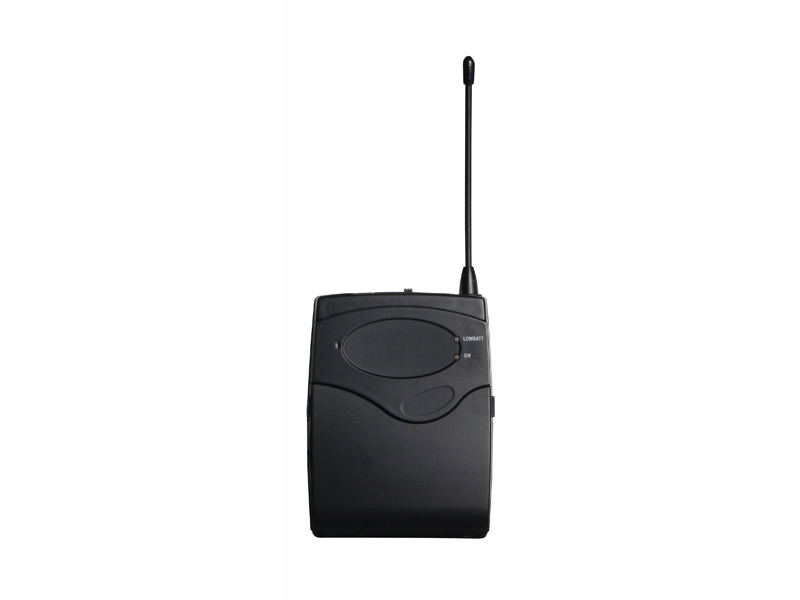

TRANSMITTER(BODYPACK)
· Transmitter power: 10mW
· Spurious emission: <40dB(with carrier)
· Microphone Type: Condenser
· Directivity： Cardioid
· Battery voltage: 1.5v*2
· Battery life: 8 hours
