LS-4800 wireless microphone system is a super quality wireless microphone design for users who require professional performance and budget solution. The system delivers perfect sound by using low interference UHF frequency band, and it is strong and reliable to meet various usages from small show to home use.
Application:
1. Singing
2. Presenter talk back
3. Conference speak
Feature
Four channel fixed frequency wireless microphone
Module design, each module is a complete receiver
Working at low interference UHF band (470-865MHz)
12 frequencies available
Smart handheld microphone and rugged rack size receiver.
Reliable SMT technology
Dual filter design makes better anti-interference ability
External TNC rubber antenna
High performance capsule
Each channel has individual volume control.
Balanced and line output available.
Specifications:

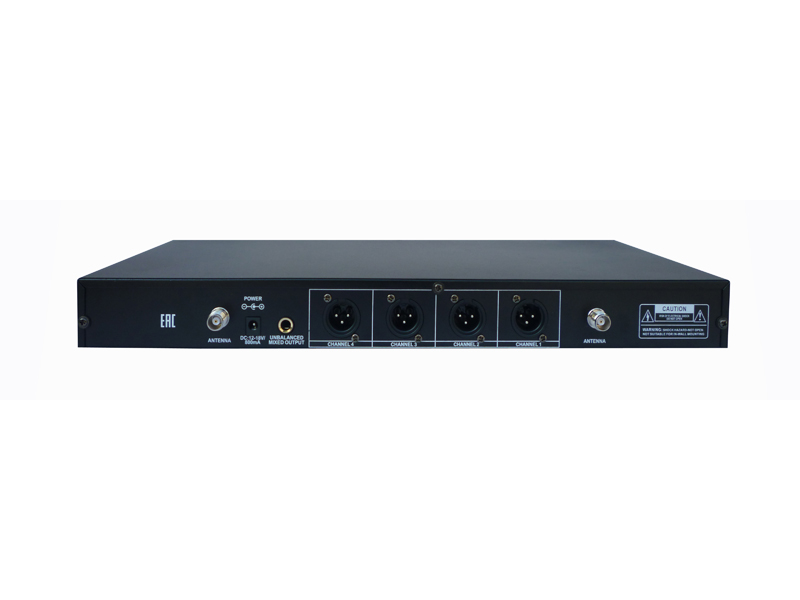

RECEIVER
· Carrier Frequency Range: UHF 470~865MHz
· Oscillation Mode: Quartz Controlled Fixed Frequency
· Stability: 10PPM
· Sensitivity: 2uV @ sinad=12 dB
· Max. Deviation Range: 30KHz
· S/N Ratio: >105dB
· T.H.D.: <0.5% @ 1KHz
· Frequency Response: 40Hz~16KHz
· Squelch Control:dual-squelch circuit
· Max. Output Level: Balance : 0—400mv, Unbalance : 0—200mv.
· Power Supply: External DC Power Supply, 0.6A, 12~18 DC
· Dimensions (mm): 480(L)*45(H)*180(D)
· Weights (Kg): 2

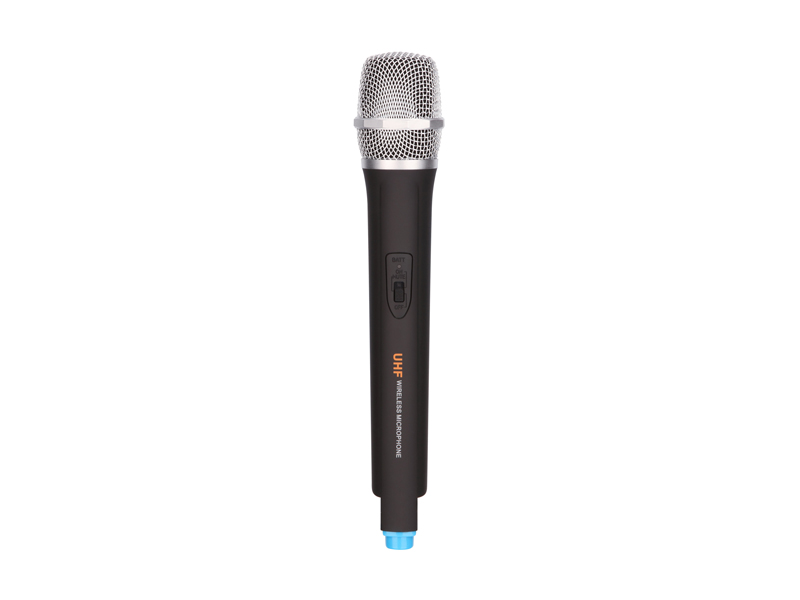

TRANSMITTER(HANDHELD)
· Transmitter power: 10mW
· Spurious emission: <40dB(with carrier)
· Microphone Type: Dynamic
· Directivity： Cardioid
· Battery voltage: 1.5v*2
· Battery life: 8 hours

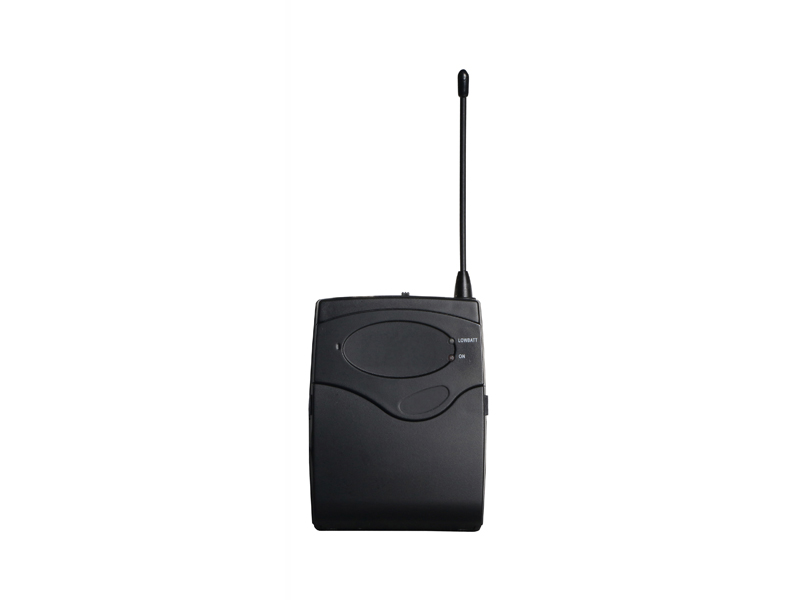

TRANSMITTER(BODYPACK)
· Transmitter power: 10mW
· Spurious emission: <40dB(with carrier)
· Microphone Type: Condenser
· Directivity： Cardioid
· Battery voltage: 1.5v*2
· Battery life: 8 hours
