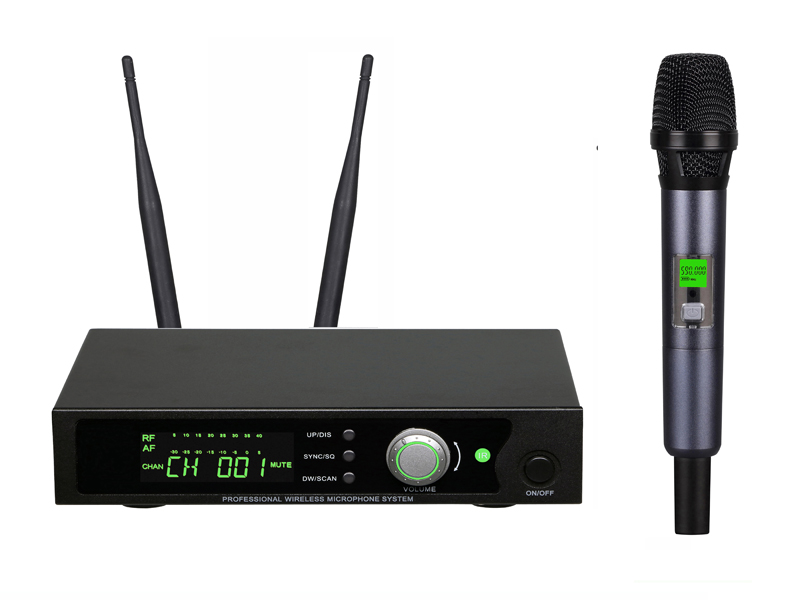

LS-960 wireless microphone system is a super quality wireless microphone design for users who require professional performance and budget solution. The system delivers perfect sound by using low interference UHF frequency band, and it is strong and reliable to meet various usages from small show to home use.
Application:
1. Singing
2. Presenter talk back
3. Conference speak
Feature
Single channel muti-frequency wireless microphone
Working at low interference UHF band (500-940MHz)
20MHz frequency bandwidth, 3 bands available
LCD display working statue
Auto scan clean channel
Infrared synchronization between receiver and transmitter
Smart handheld microphone and rugged half rack size receiver.
Reliable SMT technology
Dual filter design makes better anti-interference ability
External BNC rubber antenna
High performance capsule
Balanced and line output available.
Specifications:

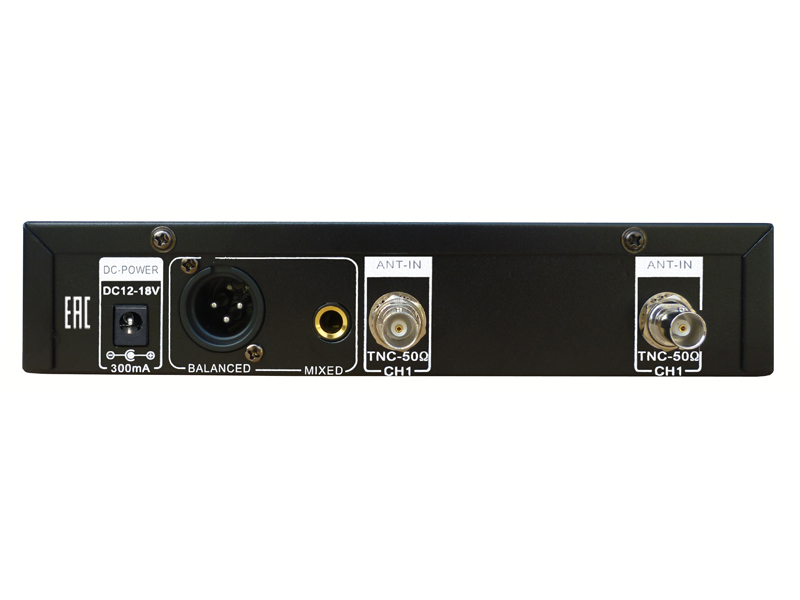

RECEIVER
· Carrier Frequency Range: UHF 500~940MHz
· Oscillation Mode: Phase-locked Loop controlled
· Stability: 10PPM
· Switching bandwidth: 20MHz
· Channel spacing: >400kHz
· Sensitivity: 1.5uV @ sinad=12 dB
· Max. Deviation Range: 48KHz
· S/N Ratio: >105dB
· T.H.D.: <0.5% @ 1KHz
· Image rejection: 85 dB typical
· Spurious rejection: 75 dB typical
· Frequency Response: 35Hz~18KHz
· Squelch Control:dual-squelch circuit
· Max. Output Level: Balance : 0—400mv, Unbalance : 0—200mv.
· Power Supply: External DC Power Supply, 0.25A, 12~15V DC
· Dimensions (m/m): 210(L)*45(H)*130(D)
· Weights (Kg): 1.5

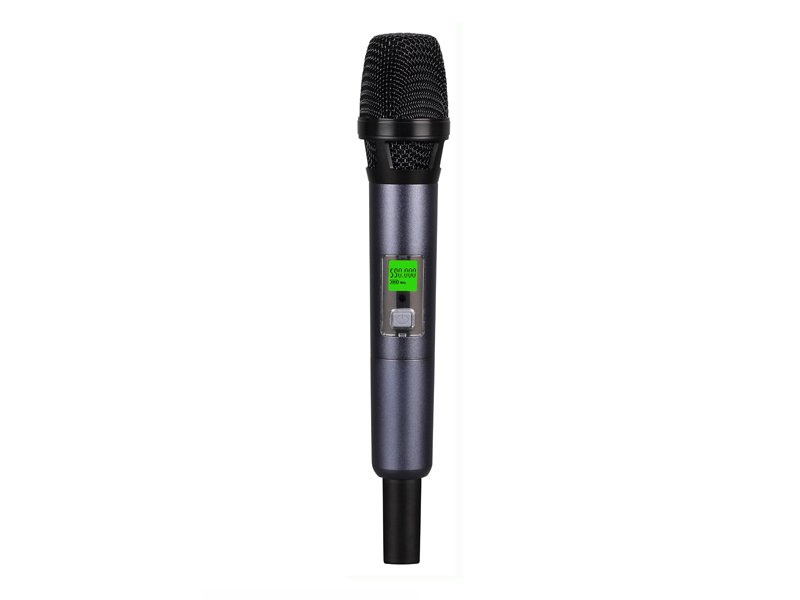

TRANSMITTER(HANDHELD)
· Transmitter power: 10mW
· Spurious emission: <60dB(with carrier)
· Microphone Type: Dynamic
· Directivity： Cardioid
· Battery voltage: 1.5v*2
· Battery life: 8 hours

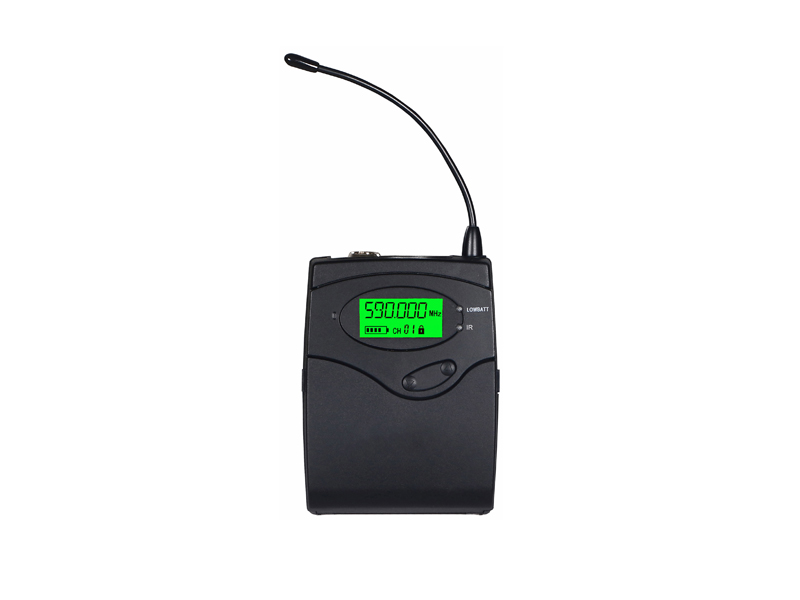

TRANSMITTER(BODYPACK)
· Transmitter power: 10mW
· Spurious emission: <60dB(with carrier)
· Microphone Type: Condenser
· Directivity： Cardioid
· Battery voltage: 1.5v*2
· Battery life: 8 hours
